Water Quality TMS Monitor

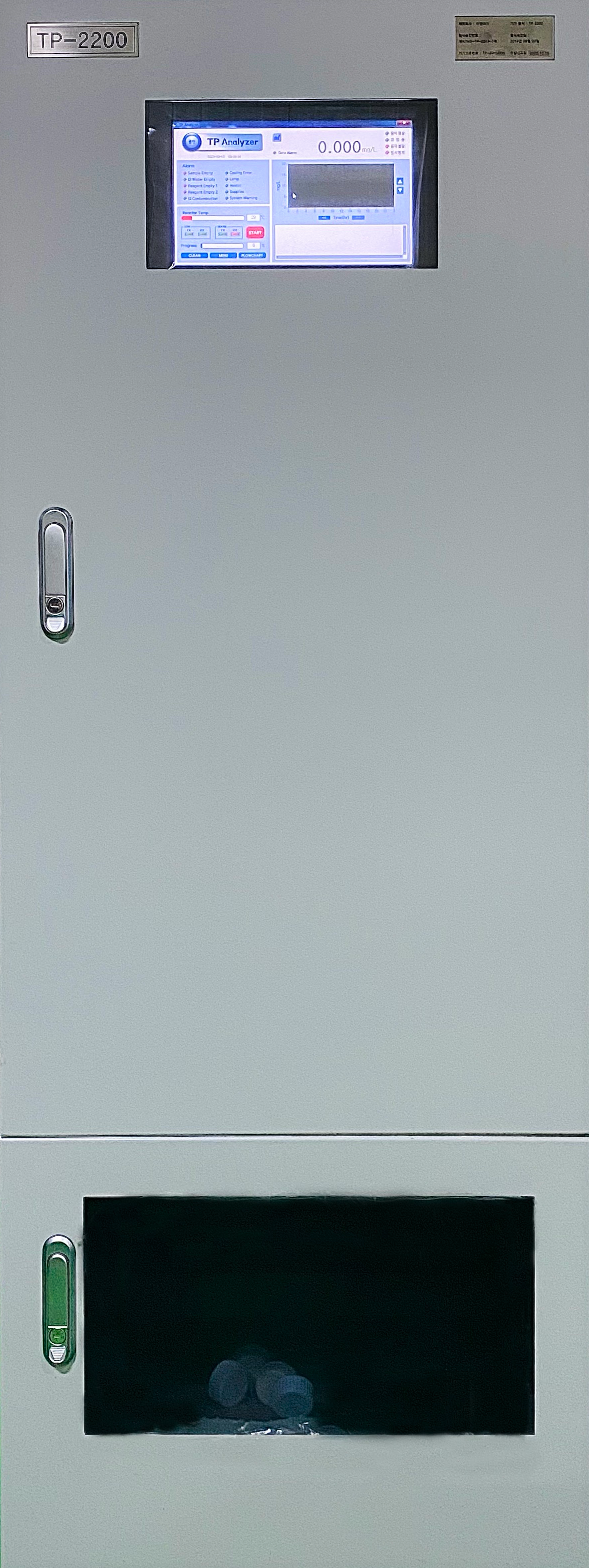

TP 2200
TP 2200
TP 2200
TP 2200

TP 2200

Product Features

• Total phosphorus analysis is possible within 1 hour

• TMS connection and various external output options (RS-232C, 4-20 mA, DC 24V external output, alarms)

• The same analysis method as the Water Pollution Process Test Method (same oxidation temperature, reagent composition, etc.)

• History report storage for alarms, consumable replacements, and errors

• Automatic shutdown function in case of device error or alarm

• Remote control function (remote control of instrument start, stop, etc.)

• Self checking function (diluted water and pollution level and lamp status display)

• Wide range of application (sewage, wastewater, industrial process management, lake water, river water, etc.)

Product Information
Key Features

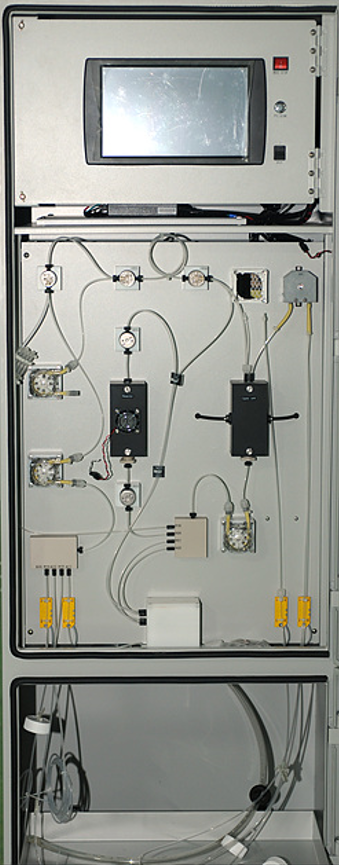

Monitor, reagent injection, heated oxidation reactor, optical system part, drain pump, multi-channel pump, reagent storage
Main Specifications
• Reagent consumption : 1.2 L/month of Potassium Persulfate Solution, 0.7 L/month of Ammonium Molybdate Solution and 0.7 L/month of Ascorbic Acid Solution
• Modular design for measurement, direct heating method, air-cooled cooling system, miniaturized optical system
• Using ultra pure water : 20 L/Month (without dilution)
• Waste liquid extraction: 7 L/month
• Sample metering repeatability: < 0.5%
• Cost-effective maintenance
• Rationalization of Measurement Control Algorithm

Detailed Product Description

Product Specifications

Measurement Range

0~20 mg/L

Data Storage
Store PC HDD, USB memory stick available
Minimum unit of scale
0.001 mg/L
Status Output
Normal, Calibrating, Operating error, Temporary pause
Measurement method

Ascorbic Acid Reduction Method

Reagent Replacement Cycle
4 weeks
Oxidation method
120°C Alkaline Potassium Persulfate Method
Electrical Output Signal
4-20 mA, RS-232C, TCP/IP
Repeatability, Accuracy, Precision
±2% of F.S
Power Supply

AC 110/220V, 50~60 Hz, Power consumption: 100 VA

Heating method
120℃ Direct heating
Temperature Range / Humidity
5~40°C, 85% RH or less
Sample / Reagent measurement
Using a peristaltic pump sample loop Line measuring
Material
Steel, Powder Coating
Channel
5 Port Multi Valve
Dimensions
550(W) x 430(D) x 1,560(H) mm
Cooling method
Air cooling via fan
Light Source / Detector
880 nm LED / Photodiode Detector
Weight80 Kg
Measurement time60 min, 1 measurement (measurement cycle can be adjusted)Operating Temperature5~40 °C
Display methodColor LCD (10.2") Touch ScreenEtc

Auto Start function in case of power failure,

Calibration solution automatic verification function


Core Technology for TP 2200

•  Installation of a small heating reactor

• Obtain accurate measuring and dilution algorithm

• Turbidity correction function (Option)

Turbidity
(NYU)		Standard concentration
(mg/L)		Measured concentrationAccuracy(%)
BeforeAfter
50.10.120.1110.0
500.10.190.1110.0
1500.10.290.100
3000.10.480.0910.0


• Fiber optic design : Reduce maintenance cost

Fiber optioc design

                           Fiber optic design



 - Rationalization of Measurement Control Algorithm

 - Rationalization of Component Positioning (Optimized for Easy Maintenance)

 -  Modular design for measurement, direct heating method, air-cooled cooling system, miniaturized optical system

 - Cost-effective maintenance

 - Sample metering repeatability: < 0.5%

 - Reagent consumption : 1.2 L/month of Potassium Persulfate Solution, 0.7 L/month of Ammonium Molybdate Solution and 0.7 L/month of Ascorbic Acid Solution

 - Using ultra pure water : 20 L/Month (without dilution)

 - Waste liquid extraction: 7 L/month
